Linings made of GLASS FIBER REINFORCED PLASTIC

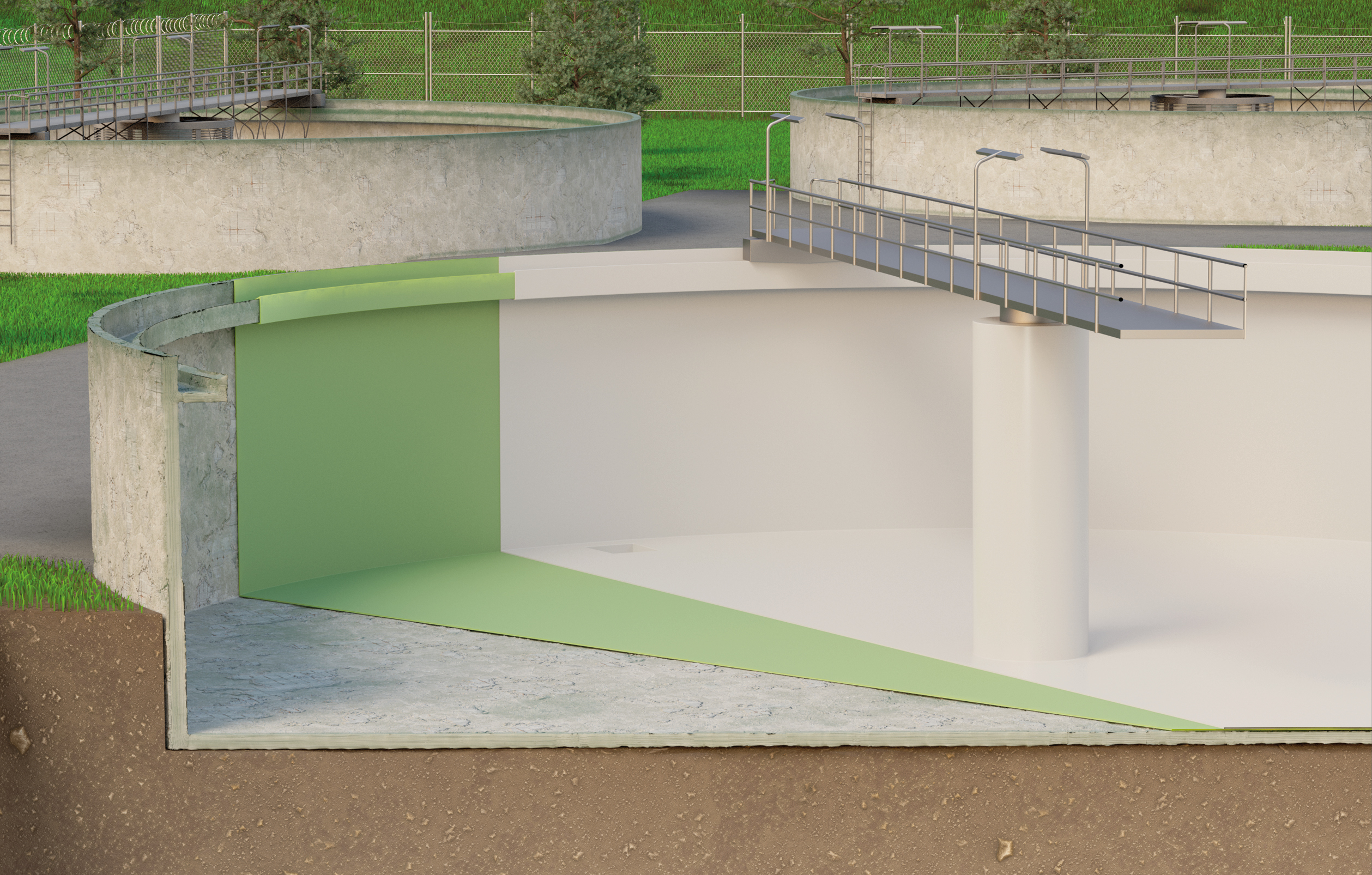

Graphic representation of a lining with GRP laminate from Haase.

Linings of underground and above-ground containers or of rooms for collecting water-polluting liquids.

Dealing with water-polluting liquids requires special protective measures: single-walled containers, for example, should be retrofitted with a second wall or with a double-walled lining. Often, the installation room should also be prepared as a drip pan with a lining so that it is absolutely tight over a long period of time.

The lining from Haase consists of high-quality glass fiber reinforced plastic (GRP). This material is resistant to a wide range of media, corrosion-free, vacuum-tight, dimensionally stable and resistant to aging. In addition, the material offers high rigidity with low weight.

With the Haase system made of prefabricated GRP laminate panels, the greatest possible flexibility in the installation and assembly of room linings is possible. The plate material is pre-assembled according to the size of the space. The laminate panels are rolled up like a carpet for transport and fit almost anywhere, even through narrow doors or over narrow stairs. Even manholes or access hatches are not an insurmountable problem. This technology and the material have already proven themselves thousands of times with the Haase basement tank.

Moist walls are also not a problem. In order to provide ventilation, the panels on the back can be supplied with knobs as spacers. The GRP panels are attached to the structure and then all dowel points and panel transitions are over-laminated in a liquid-tight manner.

The double-walled lining has a particular advantage: the use of studded laminate creates a space that can be monitored between the two GRP walls, the vacuum of which is continuously monitored with a leak detector. The double-walled GRP lining therefore meets the highest requirements for safety and durability.

The GRP laminate panels are characterized by a particularly resilient surface. It can be walked on and driven on with a pallet truck or forklift.

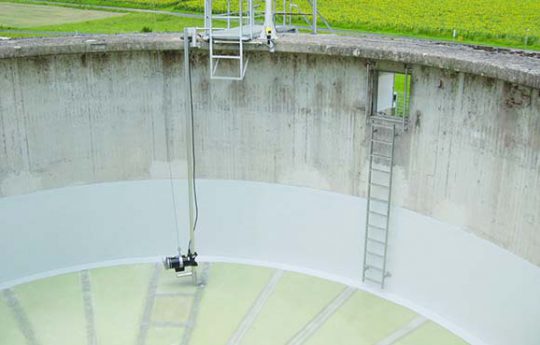

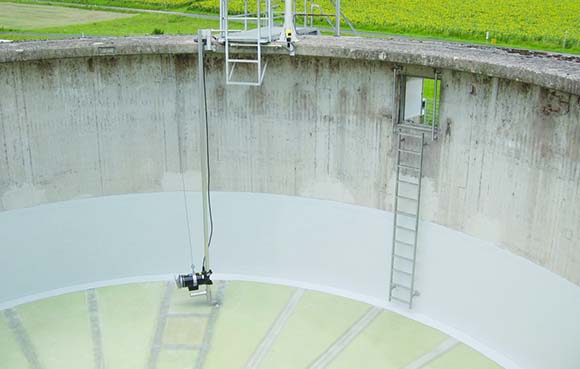

Haase lining for a basin to collect sewage sludge.

THE ADVANTAGES
OF THE HAASE GRP LININGs

  • Safety and longevity

    By using the most modern process technologies, the individual and dimensionally accurate GRP linings can be manufactured quickly and inexpensively

  • Fit anywhere

    They are prepared according to the size of the collecting space: the panels are rolled up like a carpet for transport and thus fit almost anywhere – even through narrow doors or over narrow stairs

  • The safety

    they can be double-walled with leak monitoring

  • Easy installation

    They are individually adapted and assembled on site by our trained staff

  • High chemical resistance

    they are suitable for collecting over 150 water-polluting liquids

  • Flexible use

    with the system of pre-assembled GRP laminate panels, they allow the greatest possible flexibility in installation and assembly

  • Advantages of using GRP

    they are light, practically maintenance-free and resistant to corrosion and weather

  • Stability of the GRP panels

    they are particularly resilient, can be made non-slip and are suitable for walk-in and passable areas

  • The assembly

    they are attached to the structure and then all dowel points and plate transitions are overlaminated in a liquid-tight manner

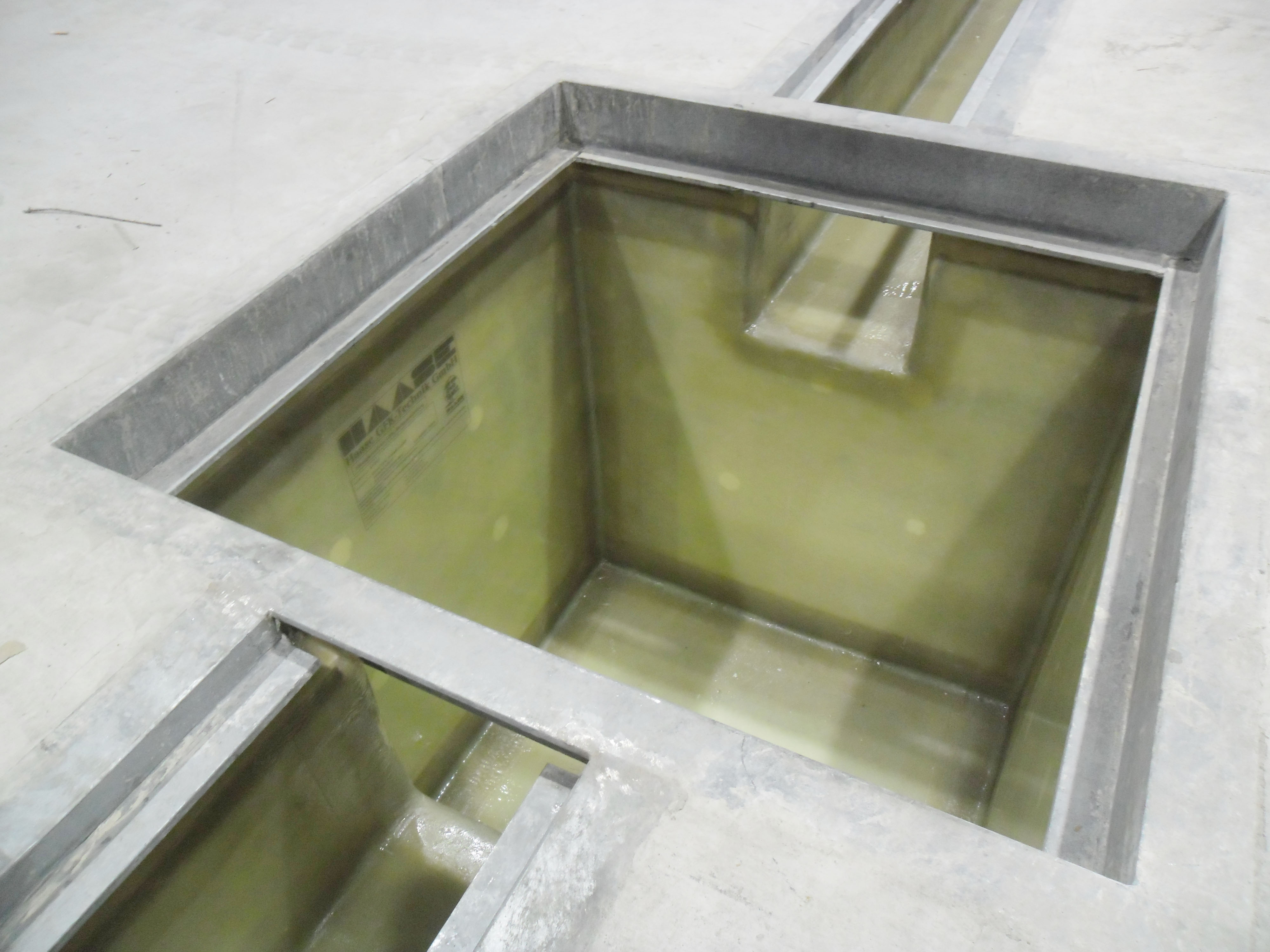

Gutters and pump sumps are lined with GRP

The lining of the company Haase Tank GmbH has the general building approval Z-59.12-232 of the German Institute for Building Technology. The material GRP enables the Haase lining to be used for the storage of heating oil EL (according to DIN 51601-1), diesel fuels (according to DIN EN 590), unused engine and gear oils as well as mixtures of saturated hydrocarbons with a flash point > 55 ° C.

Do you have any questions?

We will be happy to help you by phone or email.

haasetank
+49 359 523 550
haasetank

info(at)haasetank.de

GRP LININGS

The Haase linings are characterized by high mechanical and chemical resistance. They are light in weight and are particularly durable. During installation, they are laminated together in an odor-proof manner with the help of special resins and thus permanently bonded. It is easy to retrofit flanges or other built-in parts.
You can find more information on our GRP material and the various manufacturing processes on this page.
