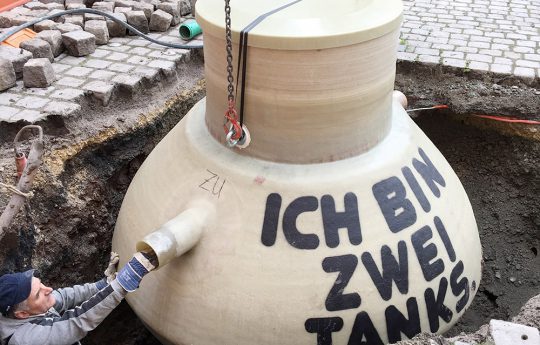

Fat Separator in the ground

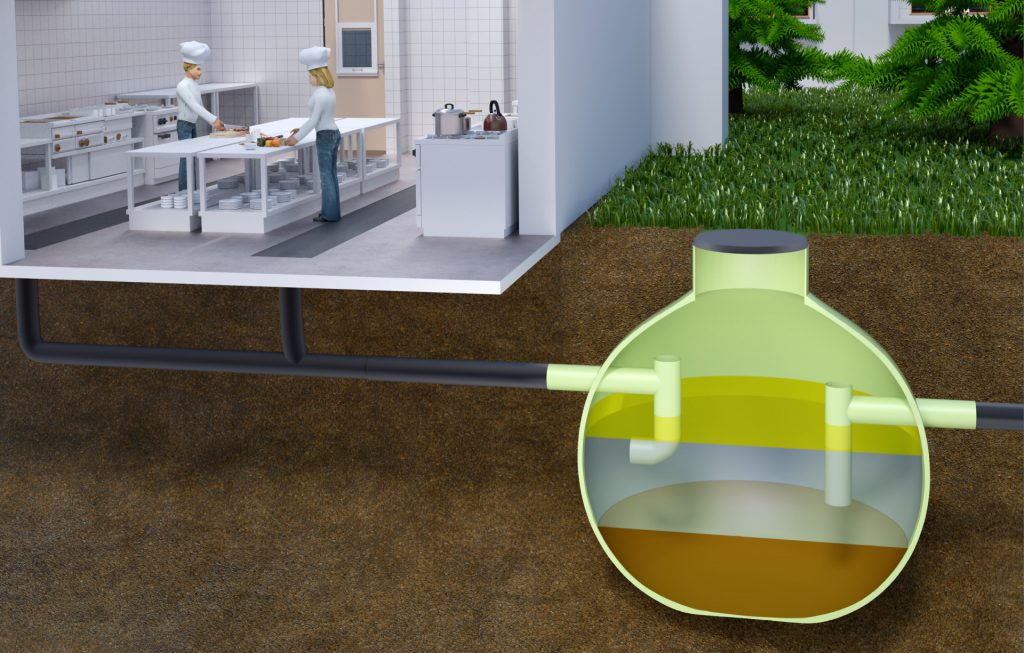

Graphical representation of a Haase fat separator

Fat separators separate fats and oils from commercial wastewater and thus prevent them from entering drainage systems. In this way, they protect the sewage pipes against clogging and corrosion and ensure the proper operation of sewage treatment plants.

The Haase fat separators are characterized by their stable container. This means that the separators made of glass fiber reinforced plastic (GRP) can be installed in the drivable area without any additional reinforced concrete slabs.


Grease separators are mandatory in companies where dirty and rinsing water containing grease and oil is produced.





Further areas of application: slaughterhouses, canning factories, hotels, canteens, motorway service stations, ready meals manufacturers

The advantages
of the Haase fat Separator

  • Resistance

    Glass fiber reinforced plastic (GRP) as the container material is dimensionally stable and chemically permanently resistant to aggressive greases and the acids and gases generated in the separator

  • Installation

    permissible up to soil class 4 (loam), with inexpensive buoyancy protection at high groundwater levels, no complex foundation required

  • Entry

    uncomplicated entry through the shaft with, 1,000 mm, without annoying partition

  • Stability

    Thanks to the multi-layered container structure, it can be driven under heavy loads without further concrete work; the seamless application of a dome shaft extension enables large installation depths

  • Compact

    Sludge trap and grease trap are in one tank

  • Tightness

    no weak points because the pipe connections and the shaft are machined to the tank in the manufacturing process

  • Weight

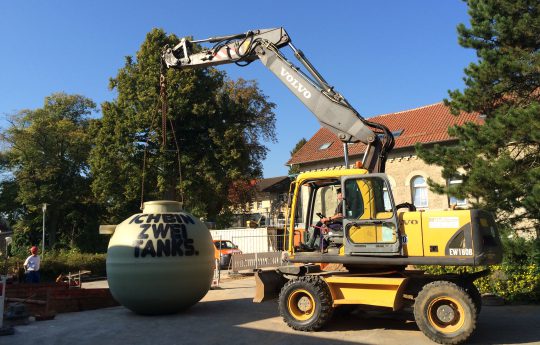

    low weight enables short installation times and moving with an excavator, no heavy-duty crane is required

  • No follow-up costs

    due to leaky joints in the shaft structure or peeling coating

  • Flexibility

    the adjustable top section enables the shaft cover to be variably adapted to the top edge of the site

  • Cleaning

    Due to the spherical shape, the grease separators have no edges on which dirt can adhere. Together with the smooth inner surface, this enables short disposal times and easy cleaning of the system


The flow rate of the incoming wastewater is reduced in the fat separator. The separation of the separable substances from the soiled dirty water takes place purely physically on the basis of the principle of gravity. Due to their lower density, oils and fats rise to the water surface and are retained in the fat separator. Due to their higher specific weight, sludge and solids sink to the bottom and are deposited there.

In the Haase separator system, the functional areas sludge trap and fat separator are arranged one above the other without spatial separation. The pre-cleaned wastewater then flows into the sewer via a sampling device. According to DIN EN 1825, the content of the separator must be completely emptied after the storage capacity of the sludge trap or fat collection space has been reached, but at least once a month. After the subsequent cleaning, the separator has to be filled again with water which corresponds to the local discharge regulations.

<div class="wp-block-image has-replacement" title="YouTube|<iframe width="560" height="315" src="https://www.youtube.com/embed/Ir2YHgUlZGM" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen>
Grafische Darstellung eines Fettabscheidersvon Haase


according to DIN EN 1825-1 and DIN 4040-100
with building inspectorate approval
Z-54.1-526 (FP = drivable variant) and
Z-54.1-540 (FG = walk-variant)

The FP separator type has a three-layer structure, and there is a filler layer made of polymer concrete between the GRP walls. This makes the fat separator highly resilient and ideally suited for installation situations in the drivable area.

The FG separator type is made entirely of glass-fiber reinforced plastic and represents a cost-effective alternative for the walk-in area.

The fat separator systems are characterized by their simple and robust technology. Both the tank and the built-in parts are made of durable plastic.

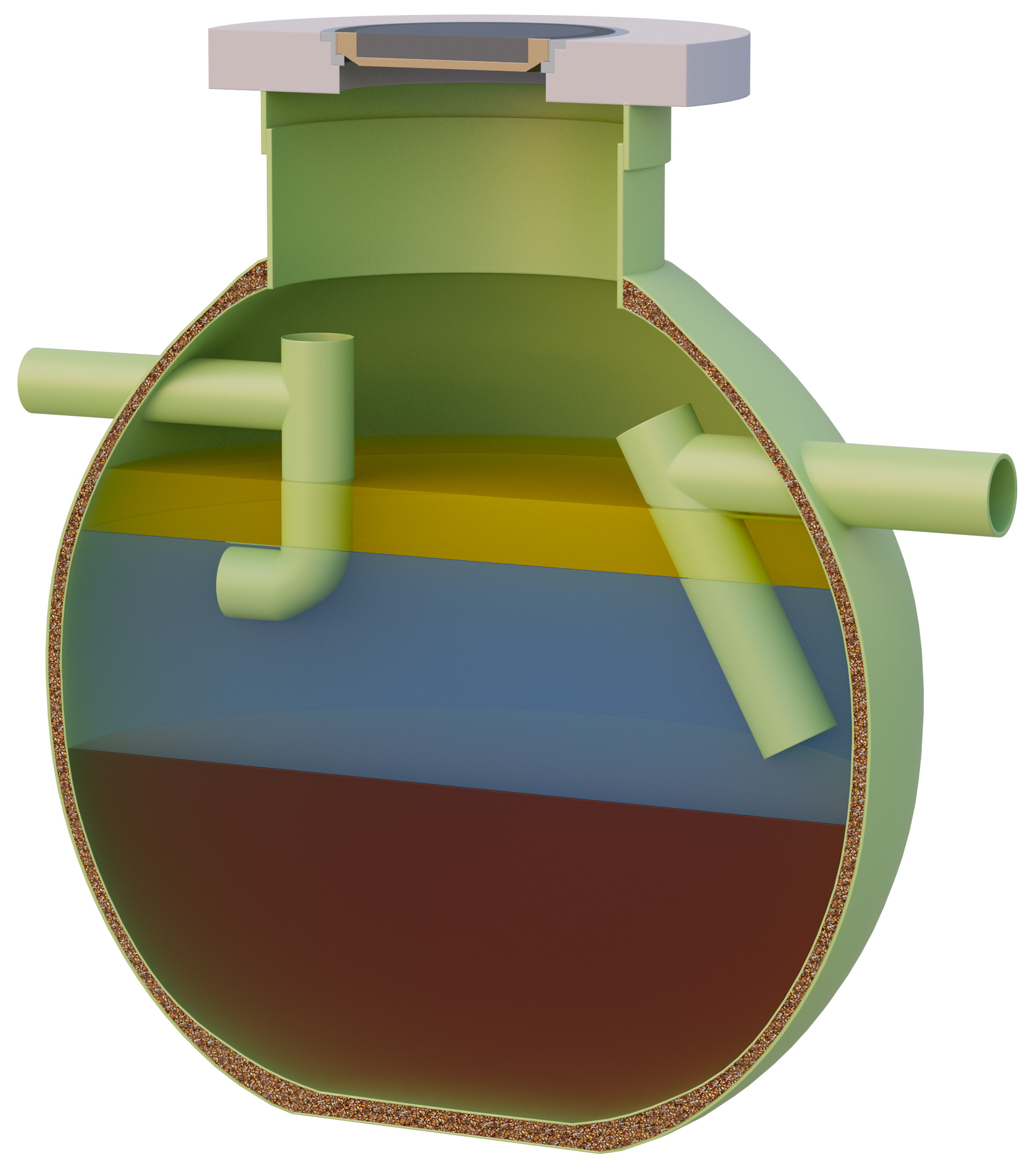

Schematic representation of the Haase fat separator undeground FP


  • liquid-tight dome shaft extension
  • accessible and drivable manhole cover
  • alarm system for grease layer thickness
  • Protective pipe connection KG DN 100, including rubber press seal

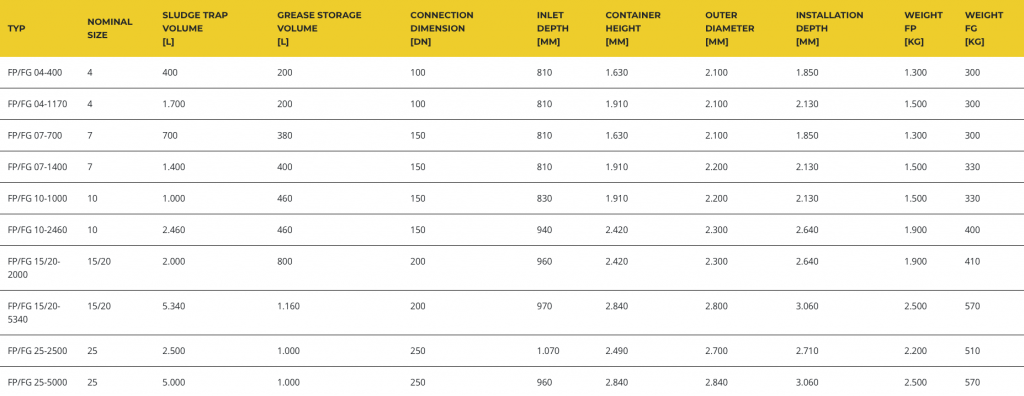

Size Cahrt

Overview of the different sizes of the underground grease separator

View Table

TypNominal sizeSludge trap volume
Grease storage volume
Connection dimension
Inlet depth
Container height
Outer diameter
Installation depth
Weight FP
Weight FG
FP/FG 04-40044002001008101.6302.1001.8501.300300
FP/FG 04-117041.7002001008101.9102.1002.1301.500300
FP/FG 07-700
FP/FG 07-14007
FP/FG 10-1000101.0004601508301.9102.2002.1301.500330
FP/FG 10-2460102.4604601509402.4202.3002.6401.900400
FP/FG 15/20-200015/202.0008002009602.4202.3002.6401.900410
FP/FG 15/20-534015/205.3401.1602009702.8402.8003.0602.500570
FP/FG 25-2500
FP/FG 25-5000
5.000 1.0002509602.8402.8403.0602.500570

Fat Separator (FS)

according to DIN EN 1825-1 and DIN 4040-100
With type test for effectiveness and CE marking.

The FS separator type is particularly suitable for smaller companies with limited space.

Due to the slim, cylindrical container with low weight, the installation can be done quickly and cheaply.

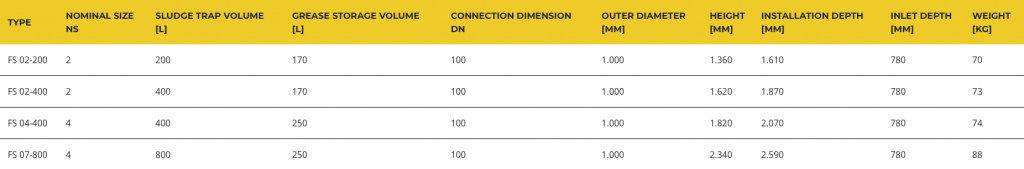

Overview of the different sizes of the grease separator FS

View Table

TypeNominal size
Sludge trap volume
Grease storage volume
Connection dimension
Outer diameter
Installation depth
Inlet depth
FS 02-20022001701001.0001.3601.61078070
FS 02-40024001701001.0001.6201.87078073
FS 04-40044002501001.0001.8202.07078074
FS 07-80048002501001.0002.3402.59078088

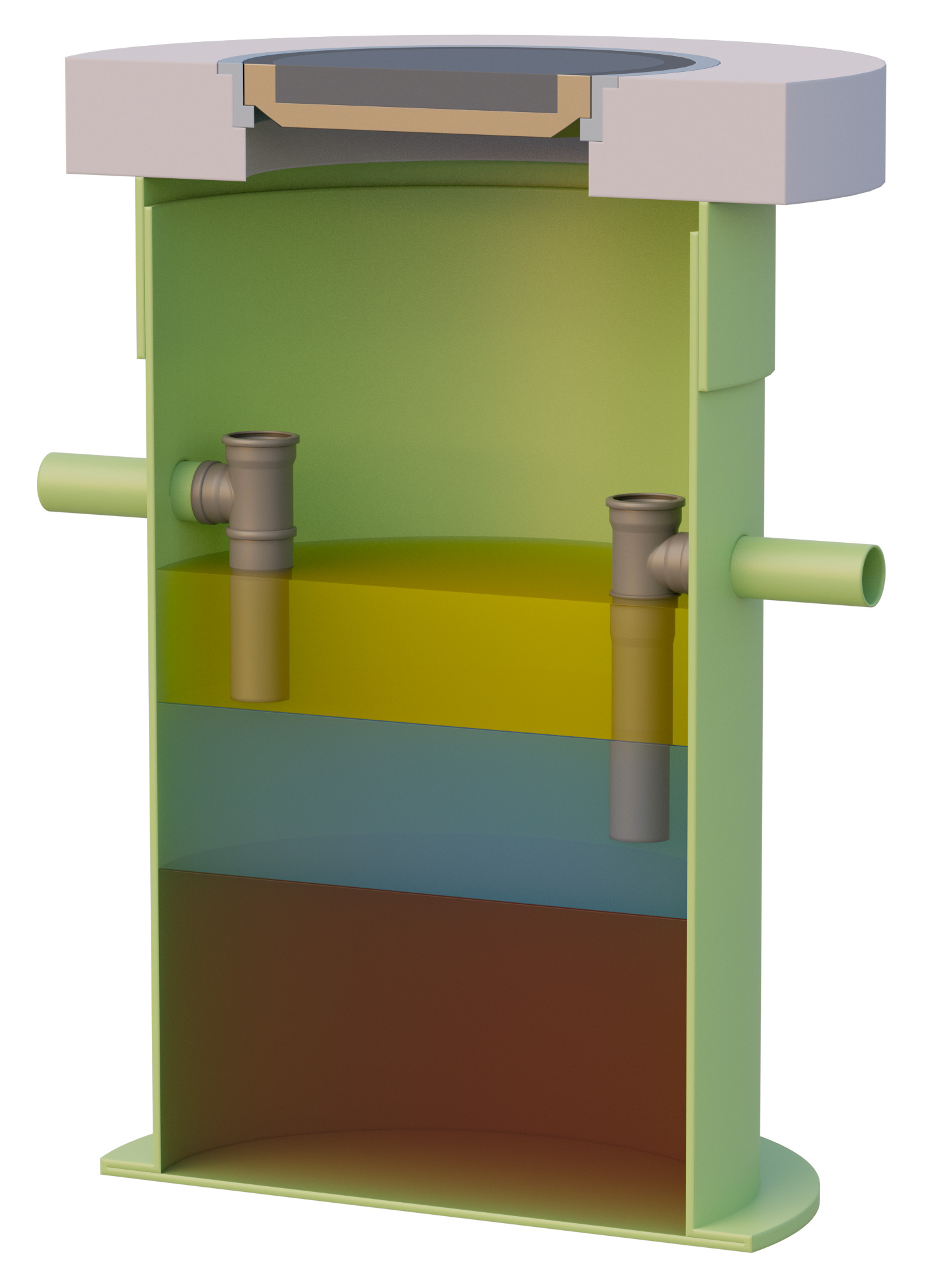

Schematic representation of the Haase fat separator undeground FS

Do you have any questions?

We will be happy to help you by phone or email.

+49 359 523 550



In the field of fat separators, the material GRP really shows its strengths. It is chemically permanently resistant to animal and vegetable fats, as well as the aggressive acids that are generated in the separator. Due to the discharge of hot waste water, vapors are generated in the fat separator. This means that the shaft area and the cover must also be resistant. Haase therefore follows the consistent path and also manufactures the shaft from GRP. The drivable concrete cover is covered with GRP at the factory. So everything inside the separator is made of plastic, including the built-in parts. You can find more information on our high-quality GRP material on the following page.


Do you have any questions, would you like a specific offer or a free and non-binding on-site appointment? Then send us a message using our contact form or call your contact person Mr. Danilo Schlenz directly at +49 35 952 – 355 15.
