Safety collecting tankS
Safety collecting tanks retain water-polluting liquids on filling and handling areas in the case of average. They protect the sewage system and water bodies if contaminated wastewater cannot be adequately cleaned with the treatment facilities provided. This is particularly the case with certain chemical or physical properties of water-polluting liquids (e.g. high densities with light liquid separators).
THE APPLICATION AREAS OF SAFETY COLLECTING TANKS
ADBLUE AT GAS STATIONS
CHEMICALS IN INDUSTRY
THE HAASE SAFETY COLLECTING TANK …
leakage is monitored
is permanently tight
is chemically stable
is highly resilient
has a light weight

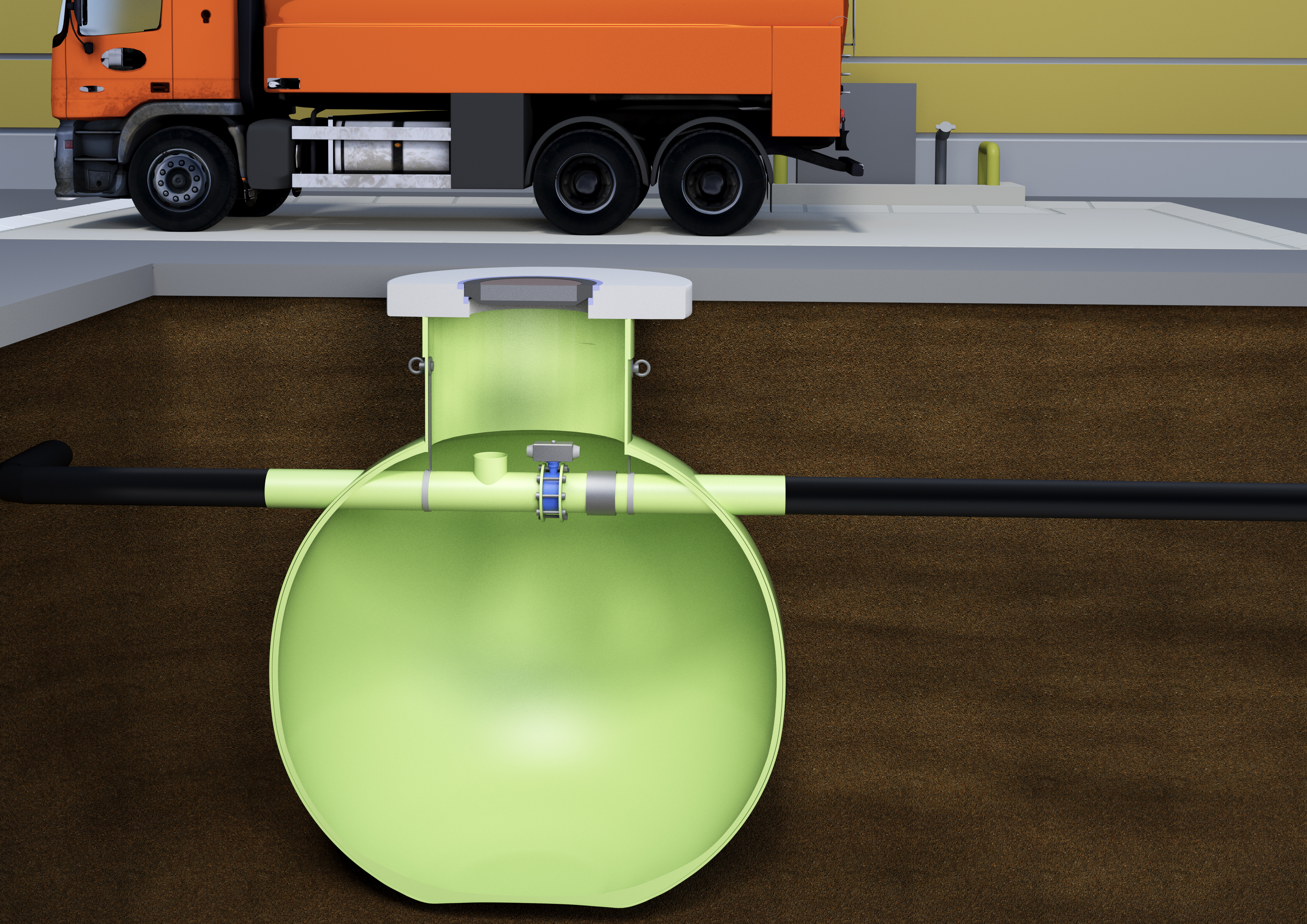

HOW THE SAFETY COLLECTING TANK WORKS
In its basic setting, the shut-off flap of the restraint system is open so that rainwater can flow freely through the pipework into the sewage system. During a handling process, the flow tube is closed by the shut-off valve by automatic switching or manual operation. The water-endangering liquid that may then occur gets into the tank via the overflow and is thus retained. The liquid level in the container can be recorded and reported by means of a overfill probe.
THE TECHNICAL DATA
- Flow pipe DN 150 with overflow nozzle
- Butterfly valve with quarter turn actuator
- Protective pipe connection KG DN 100, including rubber press seal
- Stainless steel bracket mounted in the shaft for probe attachment
- accessible and passable manhole covers
- Alarm system with level sensor for level control
- Leak detector for checking the tightness of the tank wall
- electrically conductive version with equipotential bonding

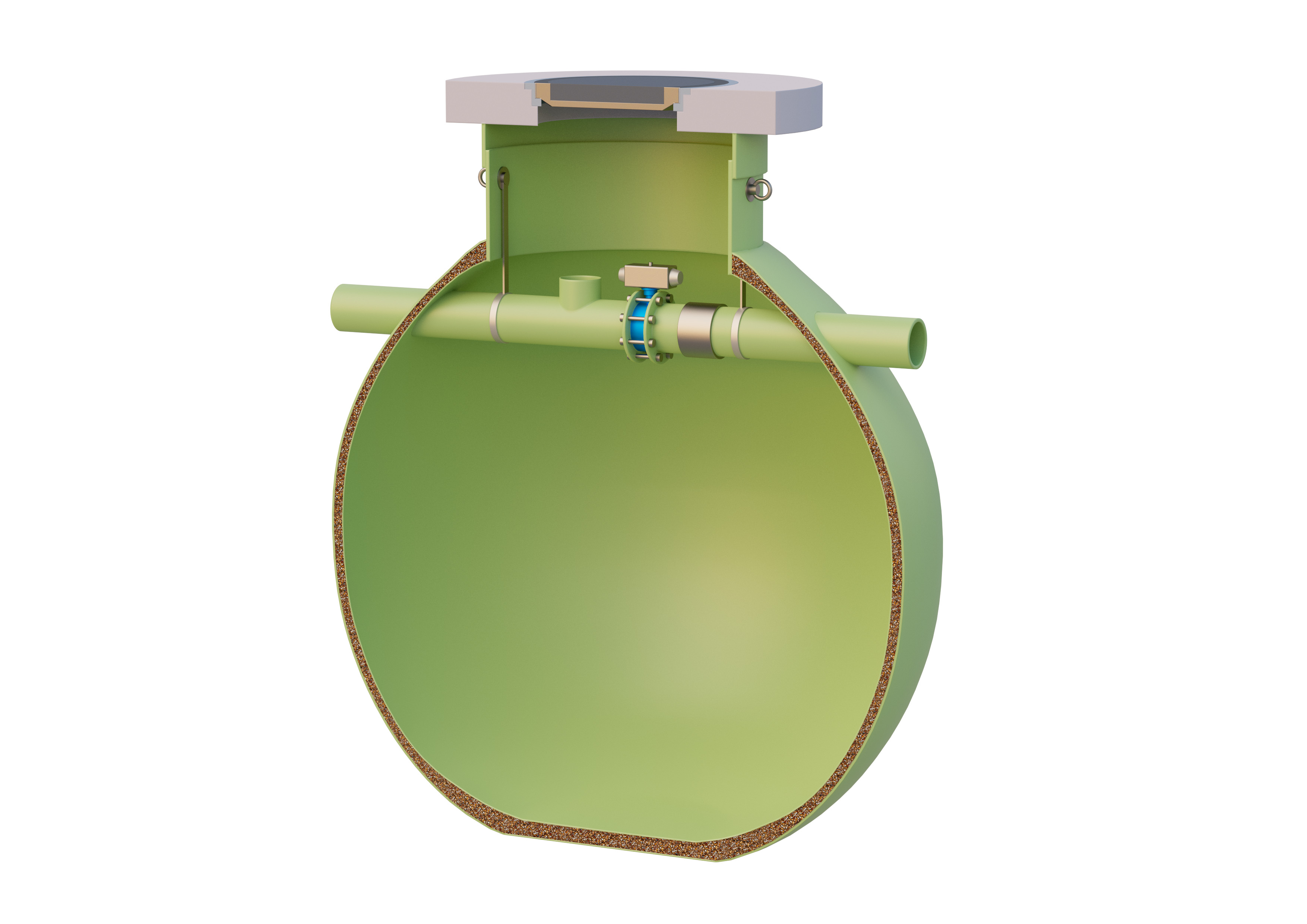

SAFETY COLLECTING TANK MADE OF GRP
The Haase safety collecting tank consists of a three-walled, spherical tank made of special poly-concrete with a glass fiber reinforced plastic inner and outer wall. The filling layer made of synthetic resin-bonded pebbles is drawn to negative pressure. This means that the safety catch basin can be permanently monitored for leaks using a leak detector. According to the media list of the DIBt, different resins are used to manufacture the container. This makes the safety catch basin suitable for a large number of water-polluting liquids. You can find more information on our GRP material and the various manufacturing processes on this page.
THE SAFETY COLLECTING TANK IN PRACTICE:
CONVINCE YOURSELF WITH OUR REFERENCES
Do you have any questions, would you like a specific offer or a free and non-binding on-site appointment? Then send us a message using our contact form or call your contact person Mr. Danilo Schlenz directly at +49 35 952 – 355 15.
